A compliant residential diving-board installation requires a pool rated for a diving water envelope (Pool Type I–V), a board and stand matched to that envelope and Point A, and verification by the manufacturer or a licensed design professional. Per ANSI/APSP/ICC-5 2011 (R2022), diving equipment may not be installed on Type O pools under any circumstances. Here are your three immediate actions:
- Confirm your pool’s Type rating (I–V or O) from the original permit drawings or a licensed pool professional’s as-built assessment.
- Obtain the manufacturer’s minimum diving envelope table and spec sheet for the specific board and stand combination you plan to install.
- Schedule as-built verification with a design engineer or certified installer before submitting permit documents.
If you are remodeling an existing pool to add a diving board, do not assume the current geometry qualifies. Get the survey first.
Key Takeaways
A compliant diving-board installation requires a pool rated Type I–V, a board and stand matched to the manufacturer’s envelope at Point A, and verified geometry that meets or exceeds minimum dimensions with no negative tolerances applied.
| Point | Details |
|---|---|
| Pool type determines eligibility | Only Type I–V pools may have diving equipment; Type O pools are prohibited by ANSI/APSP/ICC-5. |
| Point A governs all measurements | Every envelope dimension traces back to Point A, directly below the board tip at the water surface. |
| No negative tolerances allowed | Construction tolerances of ±3 in. apply to length/width/depth, but cannot reduce the minimum diving envelope below the required dimension. |
| Equipment must be a matched system | Board, stand, and pool geometry must be matched to the same manufacturer envelope; mixing components creates a non-compliant installation. |
| Wefixuglypools for compliant installs | Wefixuglypools manages plan review, as-built surveys, manufacturer coordination, and permit documentation for Phoenix-area pools. |
Table of Contents
- What are the pool diving board safety rules by pool type?
- How does the diving water envelope geometry actually work?
- What do manufacturers require for installation and labeling?
- What are the anchoring, access, and guardrail requirements?
- Common installation mistakes that cause failed inspections
- What does the permit and verification process look like?
- Your pre-construction and final-inspection checklist
- Why the “system” framing matters more than any single rule
- Wefixuglypools handles compliance reviews and code-ready installations
- Sources
What are the pool diving board safety rules by pool type?
The table below maps each pool type to its key compliance parameters. Type O pools are prohibited from any diving equipment installation.
Per SR Smith’s ANSI diving equipment guidance, platform heights above are maximums by pool type and must not be exceeded.
Three additional rules govern every pool type:
- Point A is the reference point from which all forward envelope dimensions are measured; it sits directly below the tip of the diving board.
- Minimum length, width, and depth dimensions all extend from Point A outward and downward per the manufacturer’s envelope figure.
- Steps, benches, ladders, and water features must sit entirely outside the minimum diving envelope — placing any accessory inside it is a code violation.
Pro Tip: Ask your contractor to mark Point A on the deck with a chalk line during the planning phase. It makes envelope verification fast and unambiguous for the inspector.
Manufacturer labels must be permanently affixed to the installed equipment and must state the minimum diving envelope, date of manufacture, manufacturer name, and maximum user weight. A board without this label will fail inspection.
How does the diving water envelope geometry actually work?

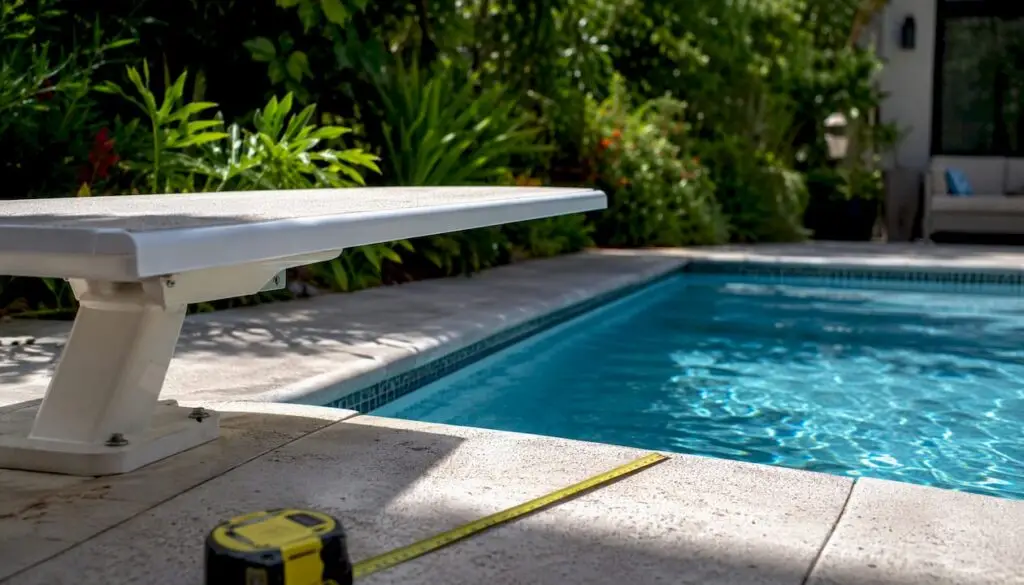

The diving water envelope is a three-dimensional shape, not a single depth reading. Think of it as a protected zone of water that a diver’s body must be able to occupy safely from entry through deceleration. Every dimension in that zone traces back to Point A as defined in ANSI/APSP/ICC-5: the point directly below the board tip at the water surface.
From Point A, the standard specifies minimum distances forward (toward the deep end), laterally (side clearances), and vertically (depth). The manufacturer maps their specific board and stand combination to one of the pool type envelopes, which is why you cannot mix a board rated for a Type III envelope with a pool built to Type I geometry.
Construction tolerances matter here. Chapter 8 of the pool code allows ±3 in. for overall length, width, and depth, and ±2 in. for other dimensions. The critical rule: negative tolerances cannot be applied to the minimum diving envelope. If the standard requires a certain depth at Point A, your pool must meet or exceed that depth after construction. A pool that comes in 2 inches shallower than the minimum envelope is non-compliant, regardless of the tolerance allowance.

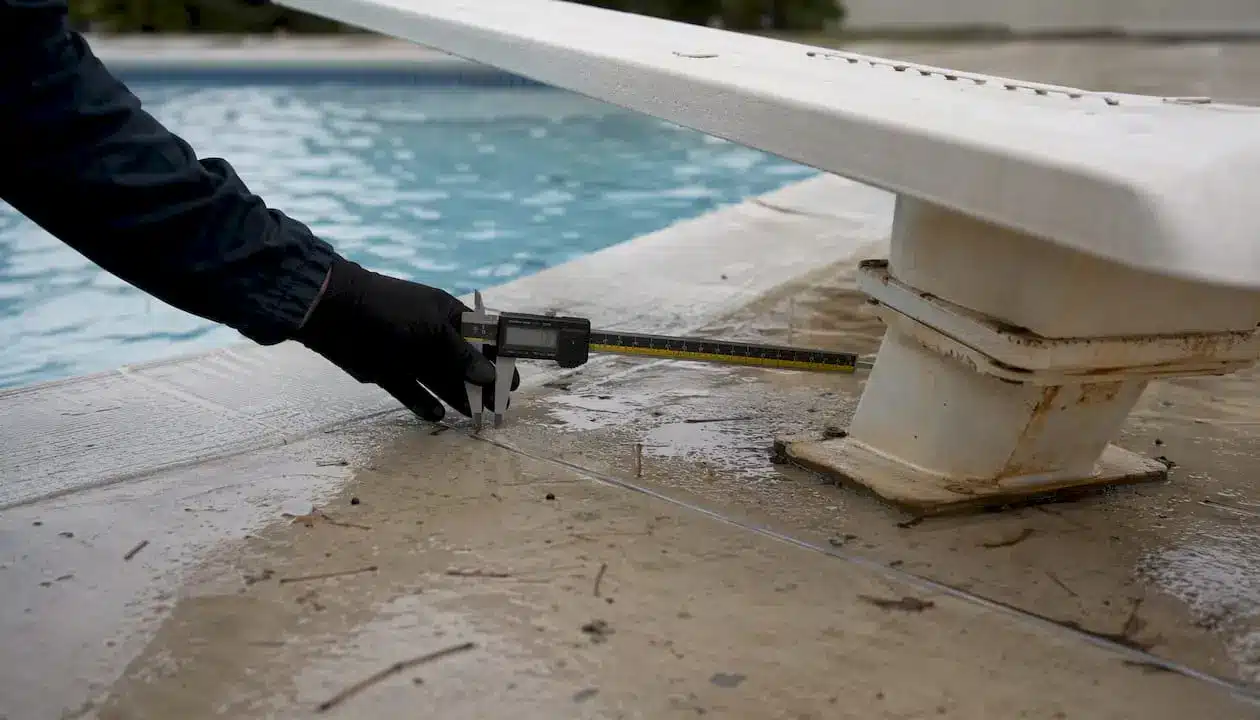

For existing pools, a certified as-built bathymetric survey is the most reliable way to establish Point A and confirm envelope dimensions before permit submission. Include this survey requirement in your remodel contract.
What do manufacturers require for installation and labeling?
Every manufactured diving board and stand combination must ship with complete installation and use instructions. Those instructions specify the minimum diving envelope for that exact board-and-stand pairing. Per Plano’s diving board guidance, the permanently affixed label on the equipment must include:
- Manufacturer name
- Date of manufacture
- Minimum diving envelope dimensions
- Maximum user weight
The board, stand, and pool geometry form a single engineered system. Swapping a stand from one manufacturer onto a board from another, or installing a board on a pool with unverified geometry, creates a non-compliant installation that voids warranties and will likely be rejected at inspection. Inspectors expect the label on the installed equipment and the matching spec sheet in the permit file — these are not optional paperwork.
Pro Tip: Request the manufacturer’s data sheet and installation label copy before you purchase. Store both in your property records alongside the signed inspection report. This documentation protects you at resale and in any liability situation.
What are the anchoring, access, and guardrail requirements?
Physical installation requirements go beyond depth. The standard addresses how the board attaches to the deck, what surfaces must feel like underfoot, and how users reach elevated platforms.
- Anchoring: Anchors must be corrosion-resistant and secured to the pool deck per the manufacturer’s installation instructions. The deck itself must be structurally capable of handling the dynamic loads a diver generates.
- Surface finish: Board surfaces must be slip-resistant and durable. Deck surfaces around the board must be cleanable and non-abrasive.
- Access: Any board or platform more than 18 in. above the deck requires a ladder or steps for safe access.
- Guardrails: Platforms exceeding 1 meter in height require handrails and guardrails. Guardrail heights are specified in the standard and must be met exactly.
Headroom above the board and platform must be clear of overhead obstructions. A pergola, shade structure, or tree canopy that intrudes into the clearance zone above the board creates a code violation and a genuine hazard.
Common installation mistakes that cause failed inspections
Most diving-board installation failures trace back to a short list of recurring errors. Knowing them in advance saves you from expensive rework.
- Installing on a Type O pool, often because the original permit drawings were not reviewed before purchase
- Relying on a single spot depth measurement instead of a full envelope survey referenced to Point A
- Mixing unmatched board and stand components from different manufacturers
- Placing pool steps, benches, or water features inside the minimum diving envelope
- Applying negative construction tolerances to justify shallower-than-required depths
A remodel scenario that comes up regularly: a homeowner purchases a new diving board for an older pool, assuming the deep end is deep enough. The contractor measures one point near the drain and calls it good. The inspector measures at Point A and finds the depth falls short of the minimum envelope for the selected board type. The result is a failed inspection, a required pool modification, and weeks of delay.
For professional pool repair situations where the geometry cannot be modified, the only compliant path is removing the diving board and selecting a pool feature appropriate for the existing pool type. Build contract language that requires manufacturer confirmation of envelope compatibility and as-built verification before final payment is released.
What does the permit and verification process look like?
Permits for diving-board installations follow a predictable sequence. Here is the step-by-step path from selection to final sign-off:
- Select the board and stand; obtain the manufacturer’s minimum diving envelope table and installation instructions.
- Commission an as-built bathymetric survey (for remodels) or confirm design drawings show Point A and the full envelope (for new construction).
- Prepare permit plan sets that include Point A location, the diving envelope dimensions, anchor and deck details, guardrail and access details, and construction tolerances certification.
- Submit the pool permit design package to the local building department with the manufacturer spec sheet attached.
- Complete installation per manufacturer instructions and approved plans.
- Schedule final inspection; have the manufacturer label visible on installed equipment and envelope markings accessible on the deck.
Who can verify compliance? A manufacturer’s representative, a licensed design engineer, or the local pool inspector can confirm geometry. For remodels where existing pool geometry is being used for a new diving installation, a design professional should review the as-built survey against the manufacturer’s envelope table before permit submission. This is standard practice and the most reliable way to avoid a failed inspection.
Documents typically required at permit submission include the manufacturer spec sheet, a plan drawing showing Point A and the diving envelope, a construction tolerances certification, and installer credentials or contractor license information.
Your pre-construction and final-inspection checklist
Hand this checklist to your contractor or inspector at the start of the project.
Pre-construction:
- Pool Type rating confirmed from original permit drawings or licensed assessment
- Manufacturer envelope table and spec sheet obtained for selected board and stand
- As-built bathymetric survey completed (remodels) or design drawings confirm Point A (new construction)
- Diving envelope shown on permit plan sets with Point A marked
- Construction tolerances certification included in contract documents
- No steps, benches, or water features planned inside the minimum diving envelope
Final inspection:
- Point A marked on deck and verified against plan drawings
- Depth at Point A measured after filling to design waterline and confirmed at or above minimum
- Manufacturer label visible on installed board and stand
- Anchor security tested; no movement under load
- Slip-resistant surfaces confirmed on board and deck approach
- All steps, benches, and features confirmed outside the envelope
- Signed inspection report captured and filed with property records
Pro Tip: Retain all manufacturer labels, the signed inspection report, and the as-built survey in your property file. This documentation is your first line of defense in any liability situation and speeds up the disclosure process at resale.
Per ANSI/APSP/ICC-5, design professionals and manufacturers are the appropriate verifiers when a pool is remodeled for diving equipment. Do not rely solely on a contractor’s visual estimate.
Why the “system” framing matters more than any single rule
Most homeowners focus on depth. Depth is one dimension of a three-dimensional compliance problem. The real risk in diving-board installations is treating the board, the stand, and the pool as three separate decisions instead of one engineered system. A board that is perfectly rated for a Type III envelope does nothing for you if the stand it is mounted on shifts the board tip forward of Point A, or if the pool’s actual geometry was never verified against the manufacturer’s figure.
The pool depth configuration question is not just about how deep the water is. It is about where the depth is, how it transitions, and whether the full three-dimensional envelope clears every dimension the standard requires. Inspectors who review diving-board permits regularly know this. They will measure at Point A, not at the deepest point of the pool.
The other underappreciated issue: construction tolerances cut both ways. Contractors sometimes interpret the ±3 in. tolerance as permission to build slightly shallow. The standard is explicit that negative tolerances do not apply to the minimum diving envelope. A pool built 2 inches shallower than the minimum required depth at Point A is non-compliant, full stop.
Wefixuglypools handles compliance reviews and code-ready installations
Wefixuglypools brings a decade of Phoenix-area pool remodeling experience directly to your diving-board project, handling every step from plan review to final inspection sign-off. We coordinate with manufacturers to confirm envelope compatibility, commission as-built surveys for remodels, and prepare permit-ready plan sets that show Point A, the full diving envelope, anchor details, and guardrail access. When a design engineer review is needed, we manage that coordination so you are not chasing paperwork on your own.
Our team also handles the documentation inspectors and title companies expect: manufacturer spec sheets, signed inspection reports, and construction tolerances certifications filed with your property records. Whether you are adding a diving board to an existing pool or building a new custom pool in Arizona from the ground up, we make the compliance process straightforward. Request a compliance review today and get a clear answer on whether your pool qualifies before you purchase any equipment.
